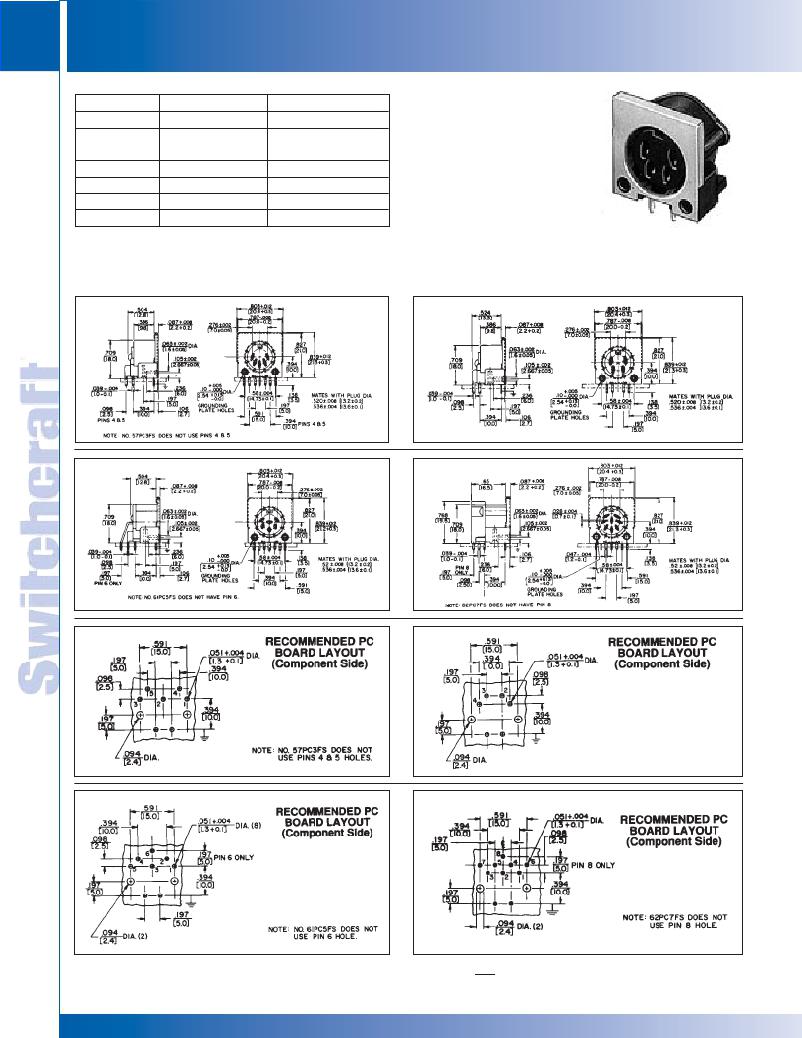

CONNECTORS & RECEPTACLES
DIN RECEPTACLES PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information
Part Number
? 57PC3FS
? 57PC5FS
? 60PC4FS
? 61PC5FS
? 61PC6FS
? 62PC7FS
Description
3 contacts at 180°
5 contacts at 180°
4 contacts at 210°
5 contacts at 240°
6 contacts at 240°
7 contacts at 270°
Contact Arrangement
B
F
D
E
G
H
RIGHT-ANGLE
SHIELDED RECEPTACLE
for printed circuit board
mounting
? 62PC8FS 8 contacts at 270° N
SPECIFYING NOTE: Another series of receptacles with a trimmed metal flange
.052" (1.32 mm) below housing top is available. Replace suffix “S” with “T” in
part numbers above to specify these receptacles or contact Switchcraft.
Mounting: #2 or #3 self-tapping screw.
? Available on special order only; contact Switchcraft for price and delivery.
TYPE 60PC4FS–TYPICAL
Similar to 57PC5F – Typical, except flange surrounding face
of insert is metal to provide through-grounding between plug
and receptacle and to potential panel/chassis for common
grounding.
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
